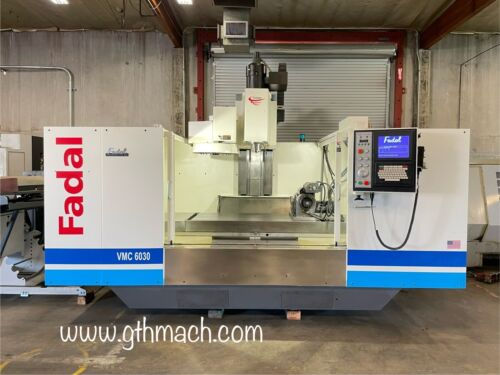

Fadal VMC 6030 CNC Machining Center With 5th Axis and Rigid Tap 10,000 RPM

Fadal VMC 6030 CNC Machining Center With 5th Axis and Rigid Tap 10,000 RPM.

SPECIFICATIONS:

Table Working Surface...................... 62.5" x 30"
Table Load Capacity.......................... 3,500 LBS
Longitudinal Travel (X-Axis).............. 60"
Cross Travel (Y-Axis)........................ 30"
Vertical Travel (Z-Axis)...................... 30"
Feed Rates (X & Y-Axes).................. 0.1 to 250 IPM
Feed Rate (Z-Axis)............................ 0.1 to 250 IPM
Rapid Traverse Rate (X & Y-Axes)........... 400 IPM
Rapid Traverse Rate (Z-Axis)................... 400 IPM
Tool Storage Capacity............................... 21
Spindle Horsepower................................. 15 HP
Spindle Speeds Range............................ 40-10,000 RPM
Spindle Taper.......................................... CAT 40
Electrics............................................. 240/3/60
Approximate Machine Dimensions........................ 118" x 158"
Approximate Machine Height............................ 119"
Approximate Machine Weight............................ 18,500 LBS

EQUIPPED WITH:

Fadal CNC 88HS
5th Axis
USB Port
Rigid Tapping
High Torque
MPG Hand Controller
Multiple Part Program Storage,
Self Diagnostics,
Heavy Duty Box Ways,
21 Station Automatic Tool Changer,
Liquid Cooled Spindle with Chiller,
Coolant Pump and tank
