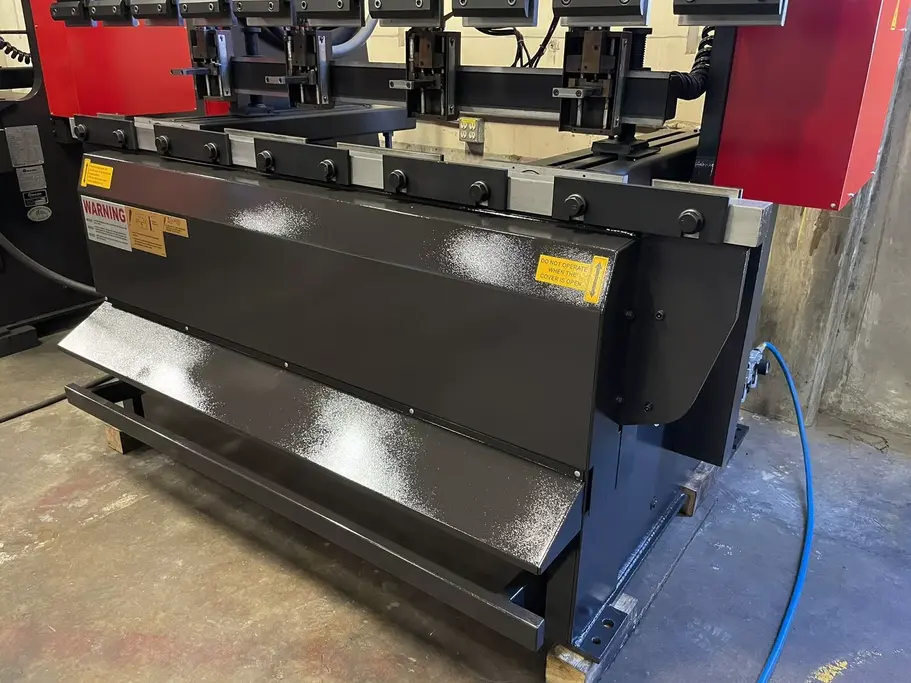

Amada RG-50 Hydraulic CNC Press Brake With NC9-EXII Control
Specifications:
Capacity 50 tons -US Tons 55
Max. bending length 82.1"
Table length 78.8"
Distance between uprights 59.9"
Throat depth 15.76"
Length of stroke 3.94"
Open height 14.58"
Ram repeatability +/- .0004"
Back gauge travel 19.6"
Approach speed 106 ipm
Bend speed 2-19 ipm
Return speed 122 ipm
Main motor 5 HP Input power 460 V 3PH
Hydraulic reservoir capacity 13.46 gallons
Machine dimensions 82"L x 56"D x 76"H Machine weight 6,600 lbs
Equipped With:

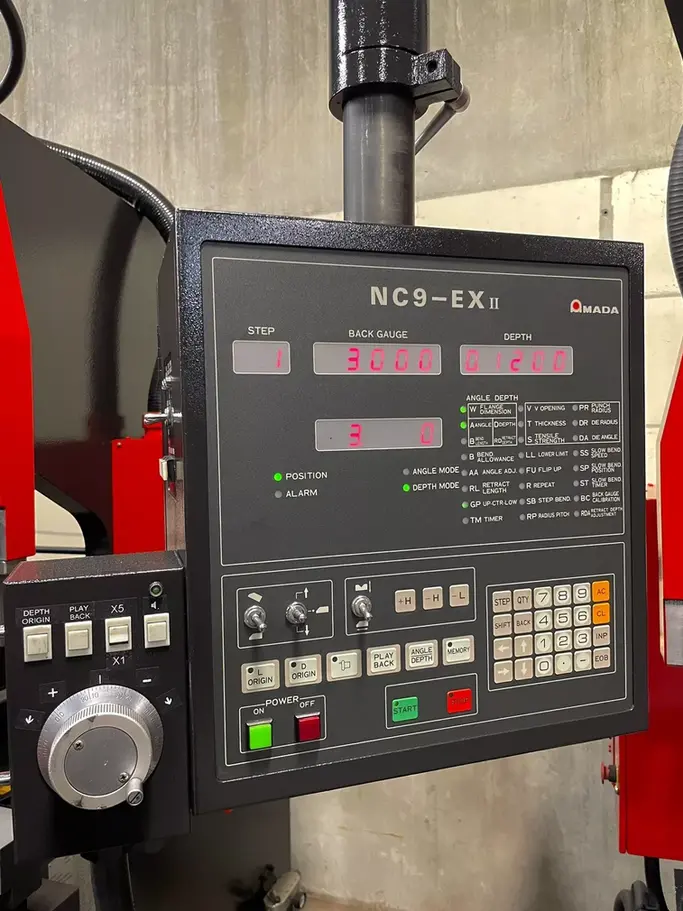

NC9-EXII 3-Axes Control & Back Gauge
(4) Pneumatic Adjustable Fingers
Foot Treadle
Remote Handwheel Depth Control
Pressure Gauge
(10) Amada Die Holders
